    Custom Length Monitor Data Cable / DP Video Cable Pure Digital Connection

    Ask Lasest Price
    Brand Name : KBTech
    Model Number : DP to dp cable
    Certification : ROHS ,CE,UL
    Price : Get lastest price
    Payment Terms : T/T ,Paypal , Western Union
    Supply Ability : 5000PCS a week
    Delivery Time : 7-10days
    • Product Details
    • Company Profile

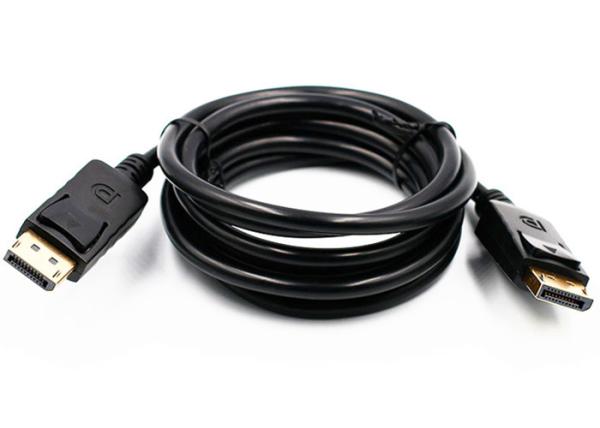

    Custom Length Monitor Data Cable / DP Video Cable Pure Digital Connection

    Displayport male to display port male monitor DP data cable


    Product Description

    Product Name: DP TO DP CABLE ,displayport to display port cable

    Connector : Dp male ,displayport male ,Gold Plated Connectors or Nickel plated

    Length: 1.5M or Custom

    Color: black.

    Connector housing: molded and clutch optional
    Connector terminal: copper alloy + gold-plated
    Connector shell: steel + nickel/gold-plated
    Cable: UL 20276 30 and 32AWG
    RoHS Directive-compliant

    Application: AR VR glasses medical ultra thin


    Feature

    1. The new DISPLAYPORT Male to DISPLAPORT Male cable

    2. Molded ends with strain relieves for reliability

    3. Brand new high quality generic cable.

    4. Support 8-bit & 10-bit deep color.

    5. The video and audio bandwidth support up to 10.8Gpbs

    6. Support one lane, one direction, four-line connection.

    7. Solid Pure Copper Conductors

    8. Shielded to block out RF and EM interference

    9. 8.64 Gbps

    10. Enable high quality optional digital audio transmissions.

    11. Pure digital connection; supports video and audio.

    12. Supports ESA and Consumer Electronics Association (CEA) standards.


    Specification

    Plug TypeDisplayPort , 20Pin, Male to Male
    ConductorOxygen free copper,Tinned copper, CCS(Copper clad steel)
    Wire gauge28AWG,30AWG,32AWG with UL certification UL20276
    Connector24K gold plated or nickel plated
    JacketPVC, PE, LSZH with or without Nylon net ,can be customized
    ColorBlack, white, or customized
    OD5.5,6.0mm
    Ferrite coreOptional
    Length0.5m-20m
    Compatibility

    Supports 4K resolution up to 3840x2160 Ultra HD, including 1920x1200 and 1080p Full HD.

    Supports the DPCP (DisplayPort Content Protection) standard in addition to HDCP.

    Supports 17.28 Gbps bandwidth; 12bpc (bits per component), 36bpp (bits per pixel), and 120Hz refresh rate.

    Supports 8-bit and 10-bit Deep Color.

    Supports the 720Mbps bidirectional auxiliary channel.

    Supports one lane, one direction, four-line connections.


    PackagePolybag or can as custom made
    Technical electrical test:
    QC100% open and short test
    VoltageDC300V 5M ohm/10ms
    Insulation Resistance10M ohm min
    Contact Resistance3 max
    Working Temperature-25C-80C
